Industrial IGBT Rectifier for Gold Jewelry Plating Hardware Machine

HardChrome Plating Power Supply>> Clik here Pulse Power Supply>>Clik here

Production application

Suitable for hardware、plastic、goldplating、silverplating、chromiumplating、copperplating、alloyplating、imitation goldplating、tinplating、zincplating、nickelplating、leadplating

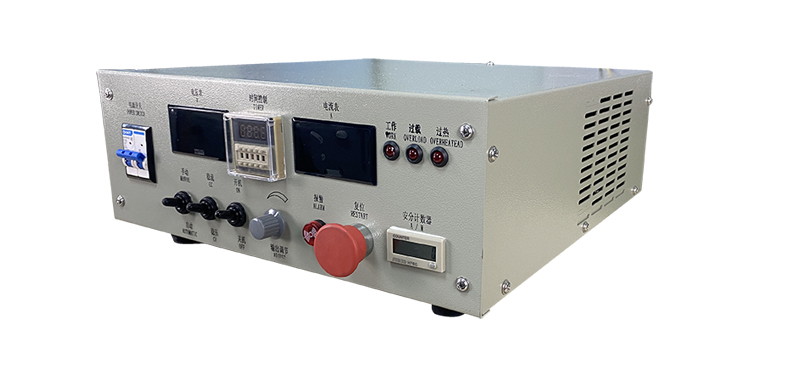

Industrial IGBT Rectifier for Gold Jewelry Plating Hardware Machine

Product features

1．Small size and light weight

The size and weight are 1/5-1/10 of the thyristor electroplating power supply, making it easy for you to plan,
expand, move, maintain and install.

2.Good energy saving effect

Since the switching rectifier uses a high-frequency transformer, the conversion efficiency is greatly improved. Under normal circumstances, the efficiency is more than 10% higher than that of silicon-controlled power supply. When the load rate reaches below 70%, the efficiency is more than 30% higher than that of silicon-controlled rectifier.

3. High output stability

Due to the fast response speed of the system (microsecond level), it has strong adaptability to network power and load changes, and the output accuracy can be better than 1%. The switching power supply has high working efficiency and high control accuracy, which is conducive to improving product quality.

4． The output waveform is easy to modulate

Due to the high operating frequency, the output waveform adjustment has relatively low processing costs, and the output waveform can be easily changed according to the user's process requirements. This has a strong effect on improving work efficiency at the work site and improving the quality of processed products.

Product paramater

Technical Parameters
Rated Input Voltage	three phase AC 380±15% 50HZ
Output Voltage	0-12V、0-15V、0-18V、0-20V（can be customized upon request）
Output Current	0-2000A、0-3000A、0-4000A、0-5000A、0-6000A、 0-7000A、0-8000A、0-1000A、0-12000A、0-15000A、 0-20000A、0-30000A（can be customized upon request）
Adjusted mode	analog stepless adjustment/Intelligent digitization
Adjusted range	current:0-maximum，voltage:0-maximum
Output display	digital voltmeter、ammeter、intelligent human-machine touch screen
Output frequency	30KHZ DC square wave
Output Time	can be set 10 working time control +10 slow time control
Output section waveform	customers can set it according to their process requirements
Save file	15 pieces（used for customers to store preset processes for easy recall next time）
Phase convert switch	mechanical communication（oil, water combined cooling system, need to be equipped with some functions when ordering instructions)
Output interface	standard RS485、4-20MA、0-10V can be chosen
Operating environment	-15~-40℃
Control accuracy	≤1%
Insulating strength	≥5MΩ
Insulating grade	Class B
IP degree	IP20
Cooling method	air cooling/water cooling
Working mode	products can be continuously full-load running
Protection mode	self-protective function under the abnormal situations such as lack phase,overheating, over-current,short circuit, undervoltage,overvoltage and so on

（zinc、tin、nickel、chromium、cadmium、copper、lead、silver、gold、alloy、imitation gold and so on）electroplating power supply regular model selection
Model	Output current A	Output voltage V	power KW	Input current A	Input voltage V	Weight KG	Width Length High （mm）
aircooling
ZJ50012	500A	12V	6	10A	380V	25	420480170
ZJ100012	1000A	12V	12	20A	380V	40	450550320
ZJ1500012	1500A	12V	18	30A	380V	50	510550320
ZJ200012	2000A	12V	24	40A	380V	70	510580680
ZJ250012	2500A	12V	30	50A	380V	80	520620920
ZJ300012	3000A	12V	36	60A	380V	80	520620920
ZJ400012	4000A	12V	48	80A	380V	120	5105801150
ZJ500012	5000A	12V	60	100A	380V	150	5105801150
ZJ600012	6000A	12V	72	120A	380V	180	5306301620
ZJ800012	8000A	12V	96	160A	380V	300	6509001650
ZJ1000012	10000A	12V	120	200A	380V	400	6509001650
water cooling
ZJ200015	2000A	15V	30	50A	380V	60	400520630
ZJ300015	3000A	15V	45	75A	380V	60	400520630
ZJ400015	4000A	15V	60	100A	380V	100	450520920
ZJ500015	5000A	15V	75	125A	380V	120	5006201150
ZJ600015	6000A	15V	90	150A	380V	130	5006201150
ZJ800015	8000A	15V	120	200A	380V	180	5006701450
ZJ1000012	10000A	12V	120	200A	380V	250	80013501500
ZJ1200012	12000A	12V	144	240A	380V	300	80013501500
ZJ1500012	15000A	12V	180	300A	380V	350	80013501500
ZJ1800020	18000A	20V	360	600A	380V	350	80013501980
ZJ2500012	25000A	12V	300	500A	380V	400	80013501980
ZJ3000012	30000A	12V	360	600A	380V	450	80013501980
ZJ1000018	10000A	18V	180	300A	380V	250	80013501350
ZJ1500018	15000A	18V	270	450A	380V	350	80013501500
ZJ1800018	18000A	18V	324	540A	380V	350	80013501980
ZJ2000018	20000A	18V	360	600A	380V	400	80013501980
precious metal regular model selection(golaplating、diamondplating and silverplating and so on)
GJS1012	10A	12V	0.12	0.6A	220V	15	420420180
GJS2012	20A	12V	0.24	1.2A	220V	15	420420180
GJS3012	30A	12V	0.36	1.8A	220V	15	420420180
GJS5012	50A	12V	0.6	3A	220V	15	420420180
GJS10012	100A	12V	0.12	6A	220V	20	420420180
GJS20012	200A	12V	0.24	12A	220V	20	420420180
GJS30012	300A	12V	0.36	18A	220V	20	420420180
there are many models，non-regularly can't be list.If U need electronic brochures and customized models,pls contact kimmy sales：+86 13760727815(WTS)
