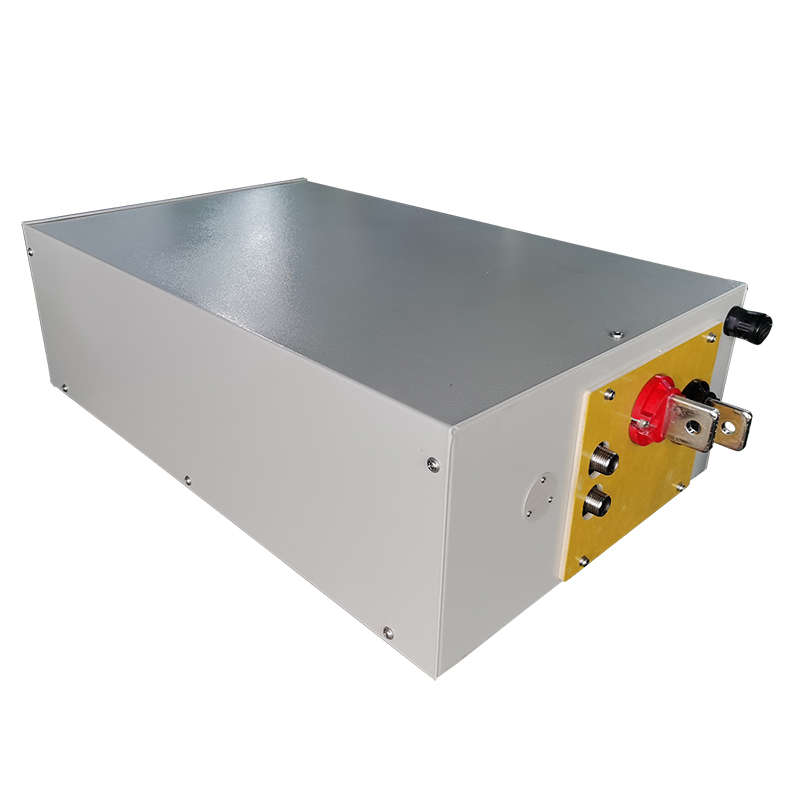

Professional Effectively Table Rectifier for Electroplating Process with CE

High Frequency Rectifier

Widely used in any industry

Can be customized as required

High quality material | Fine workmanship | Complete specifications

Gaohui power supply

Excellent performance | Stable quality | Factory direct sale

27+years of experience

1.0% ripple coefficient

15%+synchronous energy saving

0.5%stability accuracy

20%+desgin margin

10+years of product longevity

Focus on surface treatment power supply

It is suitable for plastic electroplating, alkaline copper, PLC electroplating, zinc plating, tin plating, nickel plating, chrome plating, cadmium plating, copper plating, alloy plating, imitation gold plating, etc. It can also be used for oxidation, electrolysis, electrophoresis, electroforming, polishing, etc. The application of electroplating is very wide and is closely related to our lives, from aerospace to hardware accessories. There are about 30 kinds of plating types and alloys on the market.

Product Features

1、Energy saving advantage

The industry-leading soft switching technology is used to reduce the IGBT consumption, fully utilize the inverter conversion efficiency, save energy and reduce consumption, and use the currently advanced synchronous MOS tube rectifier components, which saves 10-20% energy compared to traditional high-frequency rectifiers.

2、Advantages of electroplating on workpieces

Pure DC output power supply, increased input filtering and output filtering precision system, make the power output pure, smooth and stable, no peak effective current high, fine metal crystal particles on the workpiece surface, high density, help high and low electrical uniformity, deep plating force is strong and powerful, not easy to burr, increase brightness, improve electroplating quality.

How can customers choose high-frequency rectifiers correctly and reasonably?

Choosing electroplating rectifier power supply equipment also requires knowledge, and three requirements must be met:

1: To comply with the specifications required by the electroplating process, including the power size of the power supply, waveform indicators, and electrical performance Adjustable range of current voltage value, etc;

2: It is the reliability performance of the power supply itself, which mainly refers to the rationality, safety, and circuit characteristics of the structurePoint, cooling method, etc;

3: Consider the cost-effectiveness of its price.

Note: If the customer is not familiar or unsure, they can contact customer service for consultation.

Rectifier Can be Customize for your needs
Features:
1.Small size and light weight:
The volume and weight are 1/5-1/10 of the thyristor electroplating power supply,making it easy for you to plan,expand,move,maintain and install.
2.Good energy saving effect:
Since the switching power supply uses a high-frequency transformer,the conversion efficiency is greatly improved.Under normal circumstances,the efficiency is more than 10% higher than of silicon-controlled equipment.
3.High output stability :
Due to fast response speed of the system (microsecond level),it has strong adaptability to network power and load changes,and the output accuracy can be better than 1%.The switching power supply has high working efficiency and high control accuracy,which is conducive to improving product quality.
4.the output waveform is easy to modulate:
Due to the high operating frequency,the output waveform adjustment has relatively low processing costs,and the output waveform can be easily changes according to user's process requirements.This is a strong effect on improving work efficiency at the work site and improving the quality of process products.

Detailed display of core components

What makes us different,focusing on professional quality is better

IGBT Module

Using German Infineon/SAN RAX ,efficient and stable

Rectifier bridge module

Adopting Japanese Sanshe/Fuji Products,the performance is stable and can be used continuously for a long time.

Cooling fan

Powerful function,fast heat dissipation,low noise,waterproof and moisture-proof,the machine can work at full load for long time.

High power heat sink

Working at full load for a long time,Gaohui intelligent control system,multiple protections,stable heat dissipation,enhanced design,thickened heat dissipation aluminum plate.

Quality control

Every machines before leaving the factory has been inspected at all levels.

Synchronous energy saving technology

Adopting synchronous energy-saving technology,it has high working efficiency and saves electricity.the overall efficiency of the machine can reach 92%.

Three anti-treatment

The whole machine adopts anti-corrosion design, the chassis hardware adopts three-proof treatment, the whole machine structure is divided into high-pressure and low-pressure areas, the cooling fan mainly blows the heat dissipating aluminum material, not the electronic components, it has a long service life and is suitable for use in environments with strong acid or salt corrosion.

Output copper busbar tinned

The tinned copper busbar has good conductivity, anti-oxidation, anti-corrosion, electrical and thermal conductivity, and high temperature resistance.
