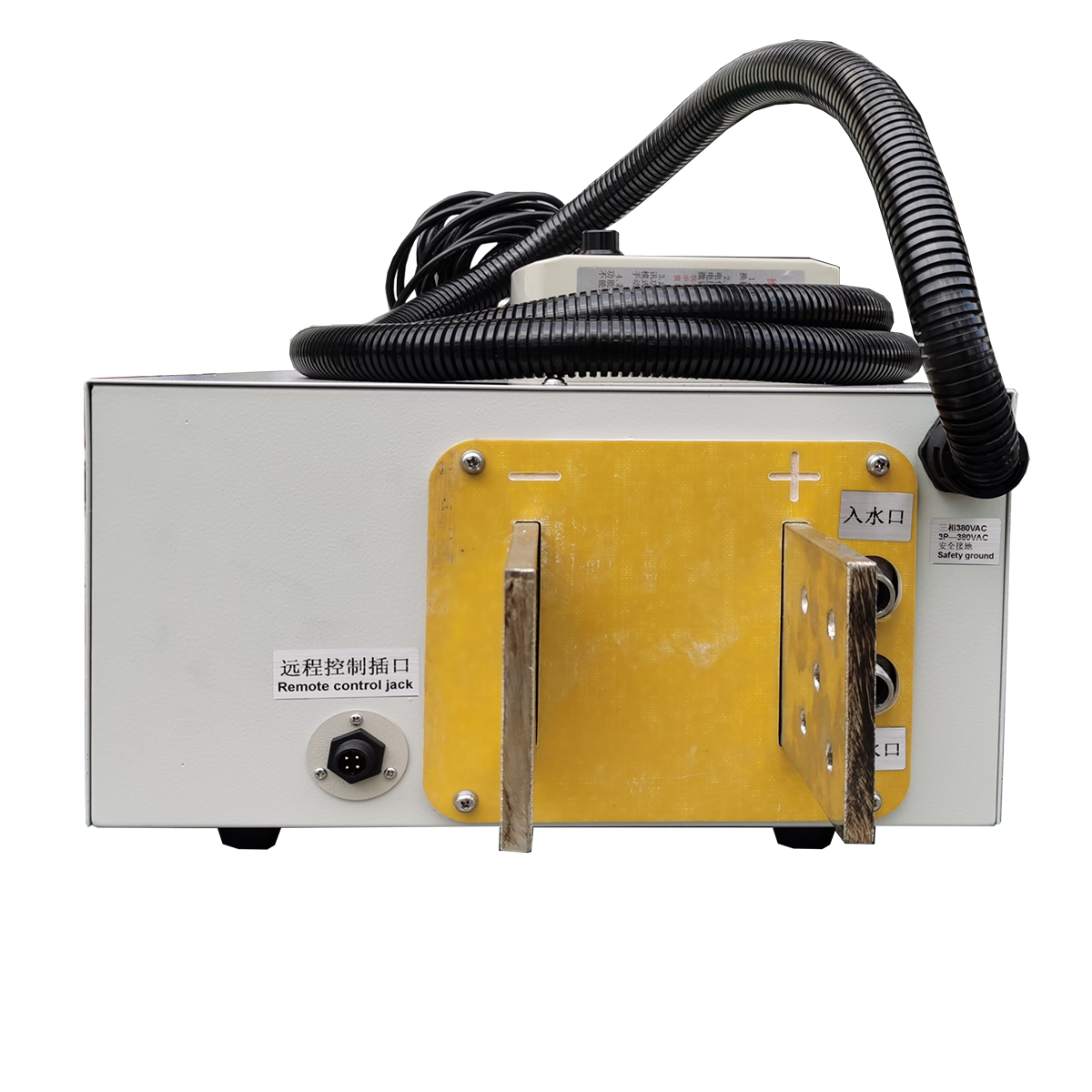

Lab Electrolysis Waste Water Portable Rectifier Device with CE Electrochemistry

Water Treatment Pulse Power Supply>>Clik here

Water treatment power supply rectifier uses:

Suitable for water treatment electrolysis, water extraction of metals, sewage treatment, seawater desalination, sodium hypochlorite electrolysis, Electrolytic descaling and other fields.

Water treatment power rectifier structure:

The water treatment power supply mainly consists of a rectifier and filter circuit, a full-bridge conversion circuit, a high-frequency transformer, a high-frequency rectifier and filter circuit, an auxiliary power circuit and a main control unit. The main control unit circuit mainly consists of a phase loss protection circuit, a temperature protection circuit, and an overload protection. circuit, short circuit protection circuit and PWM circuit with PI adjustment.

After the three-phase grid voltage passes through the power switch, it is rectified and filtered, and the resulting smooth DC voltage of 520V DC is supplied to the inverter circuit. The inverter circuit mainly consists of high-power field effect MOSFET modules or IGBT modules to form a full-bridge conversion circuit. When the PWM output control signal drives the power module respectively through the isolation driver, the two sets of diagonal tubes are alternately conducted, generating a high-frequency pulse voltage in the primary of the high-frequency transformer. The secondary voltage is transformed by the high-frequency transformer and rectified to provide energy to the load.

Features of water treatment power supply:

1. The power supply can work in a stable voltage and current limiting state or a stable current and voltage limiting state, and the two states can be switched at will.

2. The DC output voltage stabilization accuracy is 50%-100%. When the input voltage fluctuates by 10% or the load changes, the output voltage remains unchanged and the voltage stabilization accuracy is ≤0.5%.

3. It has a filtering function to prevent the power supply from interfering with the instrument, prevents the pollution of the power grid, and avoids the "good surge" phenomenon of current.

4. Phase loss protection: When the three-phase AC incoming line of the power supply loses a phase, the power supply will automatically block. After the fault is eliminated, the power supply will automatically resume work.

5. Overcurrent protection: When the current exceeds the rated value, the power supply automatically enters the overcurrent shutdown alarm state.

6. Short circuit protection: When the power load is short-circuited or the internal components of the power supply are short-circuited, the air switch automatically cuts off the power supply.

7. Over-temperature protection: When the power supply is used abnormally and the base temperature of IGBT, Schottky and other semiconductor devices is ≥80°C, the electronic switch in the main control board works and the power supply is in a blocked state, which can effectively protect the power supply.

Water Treatment Power Supply Regular Type Choice Form (if there haven't what you want,we support customize for free)
Type	Outpur Current(A)	Out put Voltage(V)	Power(KW)	Input Current(A)	Input Voltage(V)	Weight(KG)	*Width(W)Length(L)High(H)*
GH10024	100A	24V	2.4	12	220	17	380400170
GH100100	100A	100V	10	17	380	40	450500225
GH120100	120A	100V	12	20	380	40	450500225
GH20015	200A	15V	3	15	220	17	380400170
GH20024	200A	24V	4.8	8	380	40	450500225
GH20036	200A	36V	7.2	12	380	40	450500225
GH20048	200A	48V	9.6	16	380	40	450500225
GH200100	200A	100V	20	33	380	130	510580920
GH30024	300A	24V	7.2	12	380	40	450500225
GH30036	300A	36V	10.8	18	380	40	450500225
GH30048	300A	48V	14.4	24	380	95	510580690
GH300100	300A	100V	30	50	380	130	510580920
GH33030	330A	30V	9.9	16.5	380	40	450500225
GH40030	400A	30V	12	20	380	40	450500225
GH50024	500A	24V	12	20	380	95	510580690
GH50036	500A	36V	18	30	380	95	510580690
GH50048	500A	48V	24	40	380	95	510580690
GH50012	500A	12V	6	10	380	45	380400170
GH60048	600A	48V	28.8	48	380	95	510580920
GH100024	1000A	24V	24	40	380	95	510580690
GH100036	1000A	36V	36	60	380	130	510580920
GH100048	1000A	48V	48	80	380	130	510580920
GH100012	1000A	12V	12	20	380	45	480525310
GH200024	2000A	24V	48	80	380	130	510580920
GH300024	3000A	24V	72	120	380	165	5306001200
GH4000100	4000A	100V	400	667	380	195	5806501400
GH800036	8000A	36V	288	480	380	235	6006801600
GH1000036	10000A	36V	360	600	380	260	80013501510
There are so many different Types,Non-regularly can't be list completely.If you need Electronic brochures and customize models what U want.PLS contact sales: KIMMY +86 13760727815(WTS)
