Metal Scrap Electrolysis Recycling Rectifier

Electrolytic Pulse Power Supply>>Clik here

Electrolytic Power Supply-Electrolytic Rectifier Uses:

This series of products is mainly used for electrolysis of aluminum, magnesium, zinc, copper, lead, manganese and other non-ferrous metals. Hydrogen fuel electrolysis, hydrogen energy electrolysis, salt water, potassium salt electrolysis to produce caustic soda, copper foil, gold, silver precious metal smelting, cemented carbide, diamond smelting, sewage and wastewater treatment, refractory electric heating, carbon factory, graphitization furnace, DC electric arc furnace power supply and silicon carbide production and other uses with similar load properties.

Advantages of Gaohui electrolytic rectifier:

1. Small size and light weight: The size and weight are 1/5-1/10 of the silicon controlled rectifier, making it easy for you to plan, expand, move, maintain and install.

2. Good energy-saving effect: Due to the use of high-frequency transformers, the switching power supply greatly improves the conversion efficiency. Under normal circumstances, the efficiency is more than 10% higher than that of silicon-controlled equipment. When the load rate reaches below 70%, the efficiency is improved by 30% compared with silicon-controlled equipment above.

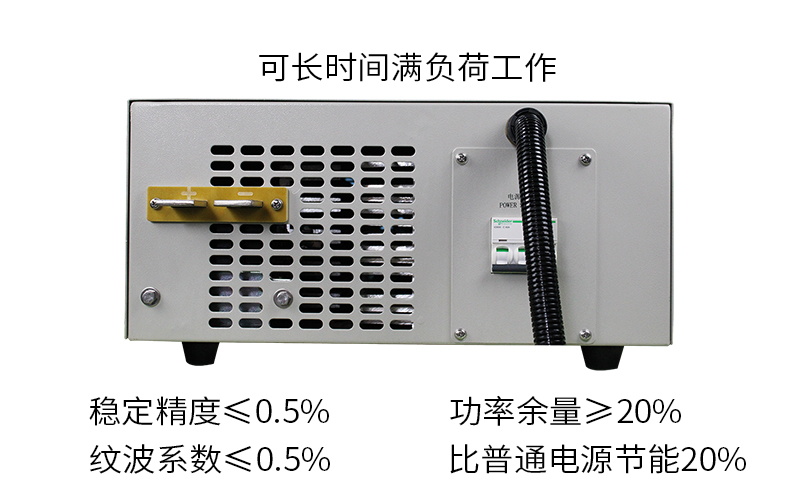

3. The latest technology in the industry, high precision, low ripple, can work overload for a long time, power margin >20%, energy saving 20% than ordinary power supply.

4. High output stability: Due to the fast system response speed (microsecond level), it has strong adaptability to network power and load changes. The output accuracy can be better than 1%. The switching power supply has high working efficiency, so the control accuracy is high. , which is conducive to improving product quality.

5. The output waveform is easy to modulate: Due to the high operating frequency, the output waveform adjustment is relatively low-cost, and the output waveform can be easily changed according to the user's process requirements. This has a strong effect on improving work efficiency at the work site and improving the quality of processed products.

6. The electrolytic power supply has a beautiful appearance, is triple-painted and corrosion-resistant, and has an acid-resistant outer casing.

7. Focus on details and internal combination to improve the efficiency and accuracy of the entire machine.

8. Water-passing copper bar: Keep the output current and voltage copper bar at normal temperature, so that the equipment can work continuously for a long time and improve efficiency.

Product Parameters
Input voltage	three phase AC380V±10% 50~60Hz
Voltage Stabilization Accuracy	≤1%
Current Stabilization Accuracy	≤1%
Output DC Current	DC 0～±20000A adjustable
Output DC Voltage	DC 0～±48V adjustable
Overall Efficiency：	≥90%
Cooling Method：	Air Cooling/Water Cooling（Available）
Product Volume：	*70007001700mm*
Product Weight：	265KG

Electrolytic type selection （Can be customized for free if there havn't what you want in the form）
Item NO.	Output Current(A)	Output Volts(V)	Power(KW)	Input Current(A）	Input Volts(V)	Weight(KG)	*Width(W)Length(L)High(H)*
Electrolytic deplating Electronic foot
DJ40006	4000A	6V	24	40A	380V	110	620450920
DJ50006	5000A	6V	30	50A	380V	130	6205001150
DJ60006	6000A	6V	36	60A	380V	150	6205001150
DJ600012	6000A	12V	72	120A	380V	150	6205001150
DJ600018	6000A	18V	108	180A	380V	180	6205001150
DJ600036	6000A	36V	216	360A	380V	200	80011501300
Electrolytic copper recovery, copper extraction from etching liquid
DJ50036	500A	36V	18	30A	380V	70	510580680
DJ50060	500A	60V	30	50A	380V	80	510580680
DJ100030	1000A	30V	30	50A	380V	60	400520630
DJ200024	2000A	24V	48	80A	380V	80	450520920
DJ250018	2500A	18V	45	75A	380V	80	400520630
DJ300018	3000A	18V	54	90A	380V	80	400520630
DJ600024	6000A	24V	144	240A	380V	160	5006201150
Electrolytic Plasma Polishing、High Voltage Power Supply
DJ30350	30A	350V	10.5	18A	380V	50	450500300
DJ50350	50A	350V	17.5	29A	380V	70	450500300
DJ100400	100A	400V	40	67A	380V	130	5805101150
DJ100500	100A	500V	50	83A	380V	150	5805101150
DJ100600	100A	600V	60	100A	380V	150	5805101150
DJ10400	10A	400V	4	7A	380V	50	450500300
DJ10500	10A	500V	5	8A	380V	70	450510320
There are so many different Types,Non-regularly can't be list completely.If you need Electronic brochures and customize models what U want.PLS contact sales: KIMMY +86 13760727815(WTS)
