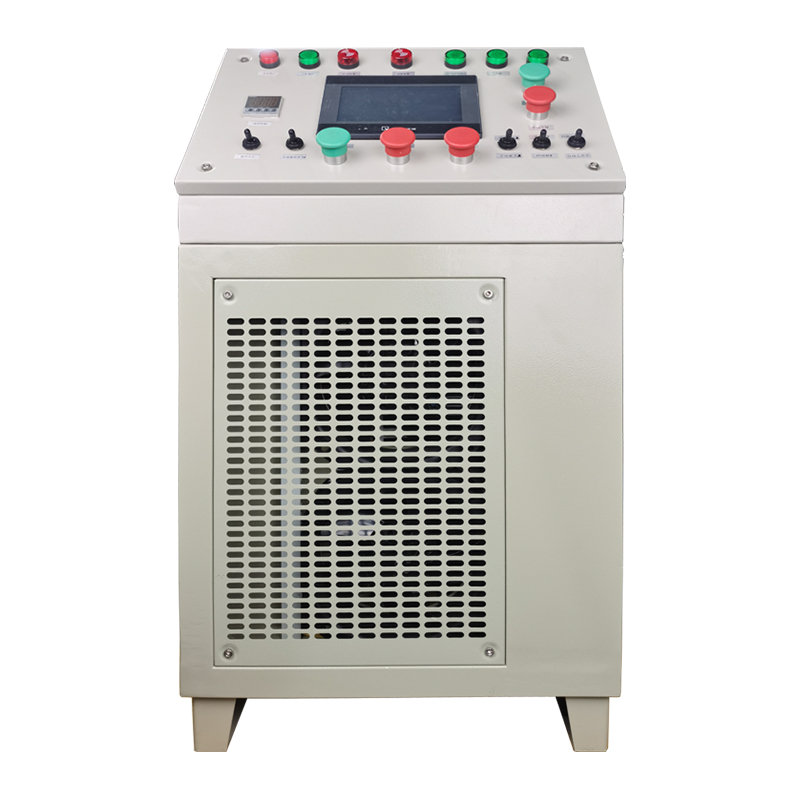

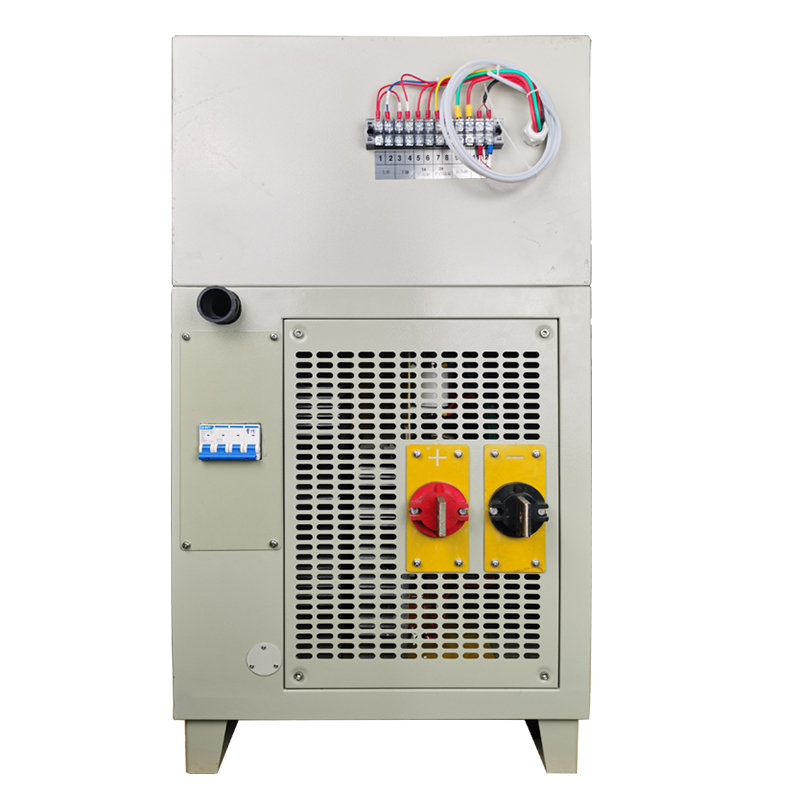

6000A18V Regulated DC Rectifier for Surfacetreatment,electroplating,electrophoresis,oxidation indust

Oxidation Pulse PowerSupply>>Clik here





Product Usage:


Mainly used in oxidation surface treatment fields such as aluminum oxidation,aluminum alloy oxidation,anodizing,hard oxidation,ceramic oxidation,micro-arc oxidation,electrochemical polishing,oxidation coloring,etc.


Features:


1.The whole machine adopts anti-corrosion treatment,the control unit is sealed,the display uses a sealed anti-corrosion B-type header,and each adapter is sealed with rubber Treatment to protect it from acid,alkali and salt gas corrosion and ensure long-term stable operation in corrosive environments.

2.Fully imported PVC shell or spray-painted metal shell,beautiful,non-corrosive,straight-through air-cooling structure,easy to install and maintain very convenient.

3.International leading technology,truly realizing high current,high frequency,large working ration pulse output

4.High efficiency(≥95%),significant power saving

5.Various  controls such as voltage stabilization and flow stabilization

6.Full digital display accuracy of current,voltage working time,frequency meter (optional),ampere meter (optional),etc.

High,sound and light alarm

7.Soft start and stop functions,with automatic protection against overcurrent,overvoltage,undervoltage,overheating,short circuit,etc.

protective function,extremely reliable

8.The equipment has undergone strict testing and long-term aging experiments before leaving factory,and can operate stably and continuously day and night.

The failure is extremely low,MTBF(Mean Time Between Failures)≥50,000 hours,truly reliable and durable.

9.It can make the electroplating layer more uniform,dense and smooth ,and enhance the wear resistance of the plated parts,etc.

10.Shorts working hours,high efficiency,saving raw materials,reducing costs,and doubling the output value and efficiency.








Product Parameters


Arbitrary Output Current

0-30000A(can be customized)

Arbitrary Output Voltage

0-1000V(can be customized)

Stabilized Voltage Accuracy

≤1%

Stabilized Current Accuracy

≤1%

Stable Mode

Steady current and limited pressure\Steady voltage and limited current can switch

Adjustable Range

Current/Voltage in 0-100%

Input Voltage

three phase AC 380±15% 50HZ

Overall Efficiency

≥90%

Power Factor

≥0.95

Ripple Coefficient

≤3% Can be adjusted to lower accuracy requirements

Working Limit

Continuous full load operation

Protect Way

Input over voltage ,under voltage,over current ,output short circuit protection

Over-heating Protection

Posses the function of drive fault self-locking protections





Oxidation Regular Type

(There are so many different Types,Non-regularly can't be list completely.If you need Electronic brochures and customize modelswhat U want).PLS contact sales:

KIMMY +86 13760727815(WTS)

Item NO.

Output Current(A)

Output Voltage(V)

Power(KW)

Input Current(A)

Inpue Voltage(V)

Weight(KG)

Width(W)*Length(L)*High(H)

YH200018

2000

18

36

60

380

50

400*500*630

YH300018

3000

18

54

90

380

70

400*500*630

YH300020

3000

20

60

100

380

100

500*670*1450

YH300024

3000

24

72

120

380

120

500*670*1450

YH400018

4000

18

72

120

380

120

500*670*1450

YH400020

4000

20

80

133

380

120

500*670*1450

YH400024

4000

24

96

160

380

120

500*670*1450

YH500018

5000

18

90

150

380

120

500*670*1450

YH500020

5000

20

100

167

380

120

500*670*1450

YH500024

5000

24

120

200

380

130

500*670*1450

YH600018

6000

18

108

180

380

130

500*670*1450

YH600020

6000

20

120

200

380

130

500*670*1450

YH600024

6000

24

144

240

380

180

500*670*1450

YH800018

8000

18

144

240

380

180

500*670*1450

Hard Anodizing Regular Type

ELEctronic brochures and customize models what U want).PLS contact sales:

KIMMY +86 13760727815(WTS)

YY200040

2000

40

80

133

380

130

450*620*920

YY200060

2000

60

120

200

380

150

600*750*1300

YY200080

2000

80

160

267

380

180

600*750*1300

YY300040

3000

40

120

200

380

200

600*750*1300

YY400050

4000

50

200

333

380

250

600*750*1300

YY400060

4000

60

240

400

380

250

600*750*1300

YY500050

5000

50

250

417

380

300

600*750*1300

YY500060

5000

60

300

500

380

300

600*750*1300

YY600060

6000

60

360

600

380

300

600*750*1300

YY600080

6000

80

480

800

380

300

600*750*1300

YY50150

50

150

7.5

13

380

40

420*500*320
