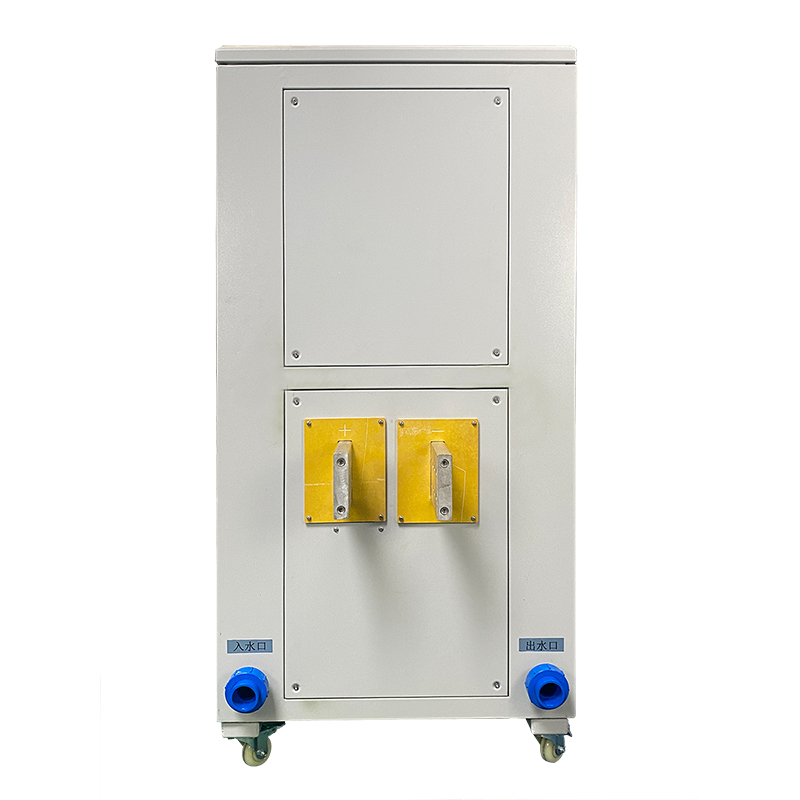

12000A DC Power Electroplating Rectifier for Chromeplating

Metal Plating Power Supply>> Clik here Pulse Power Supply>>Clik here

Hardware(zinc、tin、nickel、chrome、cadmium、copper、lead、silver、gold、alloy、imitation gold and so on) Electroplating Power Supply Regular Type Selection
NO.	Output Current(A)	Output Voltage(V)	Power(KW）	Input Current(A)	Input Voltage(V)	Weight(KG)	Width(W)Length(L)Height(H)（mm）
Air cooling
ZJ50012	500	12	6	10	380	25	420480170
ZJ100012	1000	12	12	20	380	40	450550320
ZJ1500012	1500	12	18	30	380	50	510550320
ZJ200012	2000	12	24	40	380	70	510580680
ZJ250012	2500	12	30	50	380	80	520620920
ZJ300012	3000	12	36	60	380	80	520620920
ZJ400012	4000	12	48	80	380	120	5105801150
ZJ500012	5000	12	60	100	380	150	5105801150
ZJ600012	6000	12	72	120	380	180	5306301620
ZJ800012	8000	12	96	160	380	300	6509001650
ZJ1000012	10000	12	120	200	380	400	6509001650
Water Cooling
ZJ200015	2000	15	30	50	380	60	400520630
ZJ300015	3000	15	45	75	380	60	400520630
ZJ400015	4000	15	60	100	380	100	450520920
ZJ500015	5000	15	75	125	380	120	5006201150
ZJ600015	6000	15	90	150	380	130	5006201150
ZJ800015	8000	15	120	200	380	180	5006701450
ZJ1000012	10000	12	120	200	380	250	80013501500
ZJ1200012	12000	12	144	240	380	300	80013501500
ZJ1500012	15000	12	180	300	380	350	80013501500
ZJ1800020	18000	20	360	600	380	350	80013501980
ZJ2500012	25000	12	300	500	380	400	80013501980
ZJ3000012	30000	12	360	600	380	450	80013501980
ZJ1000018	10000	18	180	300	380	250	80013501350
ZJ1500018	15000	18	270	450	380	350	80013501500
ZJ1800018	18000	18	324	540	380	350	80013501980
ZJ2000018	20000	18	360	600	380	400	80013501980
there are many models，non-regularly can't be list.If U need electronic brochures and customized models,pls contact kimmy sales：+86 13760727815(WTS)
