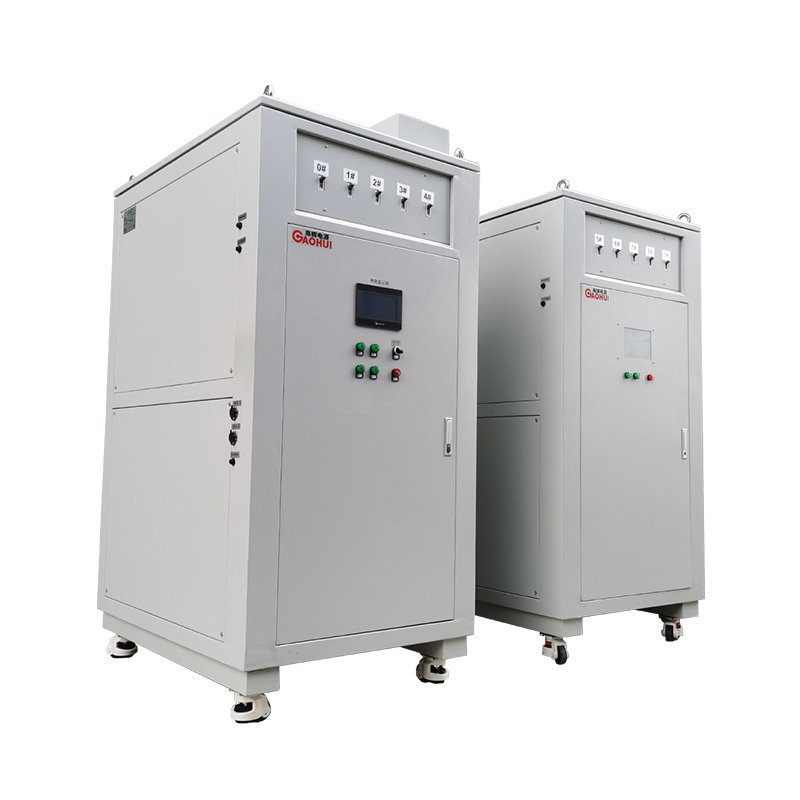

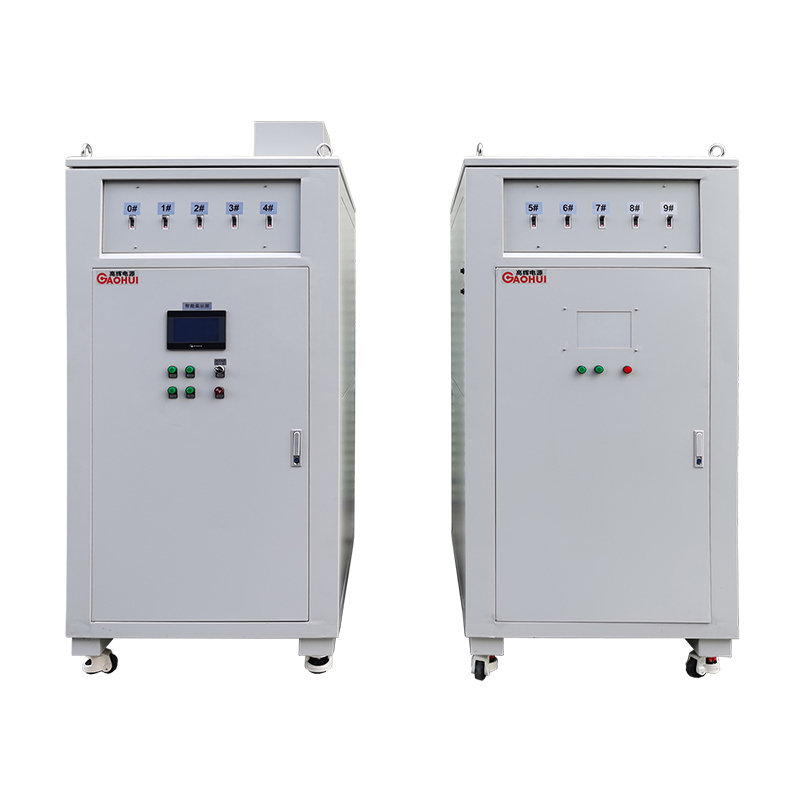

20000A24VHigh Power DC PowerSupply for Plating,Electroplating,Oxidation,Surface Treatment

Oxidation Pulse Power Supply>>Clik here

Product Usage:

Mainly used in oxidation surface treatment fields such as aluminum oxidation,aluminum alloy oxidation,anodizing,hard oxidation,qualified oxidation,micro-ace oxidation,electrochemical polishing,oxidation coloring,etc.

Features:

1.The performance of this series of power supply is much higher than the internationally advanced Italian CIS-ART or TECNO.

2.The front and rear edges of the pulse are both 90' vertical,which is ideal for electrochemical processes.

3.The height of pulse superposition level can be adjustable at will.

4.It has various protection functions such as phase loss,load short circuit,overcurrent and voltage.

5.When working in a stable voltage state,it has voltage limiting functions.

6.Pulse soft start is adjustable from 1 to 32 minutes,especially suitable for hard oxidation of aluminum.

7.The control accuracy can be within 1%,ensuring the high standards of uniformity,density and wear resistance of the oxide film.

8.Parameters can be modified at will during operation and stored at any time.The storage time is 20 years after power failure.

Arbitrary Output Current	0-30000A（can be customized）
Arbitrary Output Voltage	0-1000V（can be customized）
Stabilized Voltage Accuracy	≤1%
Stabilized Current Accuracy	≤1%
Stable Mode	Steady current and limited pressure\Steady voltage and limited current can switch
Adjustable Range	Current/Voltage in 0-100%
Input Voltage	three phase AC 380±15% 50HZ
Overall Efficiency	≥90%
Power Factor	≥0.95
Ripple Coefficient	≤3% Can be adjusted to lower accuracy requirements
Working Limit	Continuous full load operation
Protect Way	Input over voltage ,under voltage,over current ,output short circuit protection
Over-heating Protection	Posses the function of drive fault self-locking protections

Oxidation Regular Type (There are so many different Types,Non-regularly can't be list completely.If you need Electronic brochures and customize modelswhat U want).PLS contact sales: KIMMY +86 13760727815(WTS)
Item NO.	Output Current(A)	Output Voltage(V)	Power(KW)	Input Current(A)	Inpue Voltage(V)	Weight(KG)	*Width(W)Length(L)High(H)*
YH200018	2000	18	36	60	380	50	400500630
YH300018	3000	18	54	90	380	70	400500630
YH300020	3000	20	60	100	380	100	5006701450
YH300024	3000	24	72	120	380	120	5006701450
YH400018	4000	18	72	120	380	120	5006701450
YH400020	4000	20	80	133	380	120	5006701450
YH400024	4000	24	96	160	380	120	5006701450
YH500018	5000	18	90	150	380	120	5006701450
YH500020	5000	20	100	167	380	120	5006701450
YH500024	5000	24	120	200	380	130	5006701450
YH600018	6000	18	108	180	380	130	5006701450
YH600020	6000	20	120	200	380	130	5006701450
YH600024	6000	24	144	240	380	180	5006701450
YH800018	8000	18	144	240	380	180	5006701450
Hard Anodizing Regular Type ELEctronic brochures and customize models what U want).PLS contact sales: KIMMY +86 13760727815(WTS)
YY200040	2000	40	80	133	380	130	450620920
YY200060	2000	60	120	200	380	150	6007501300
YY200080	2000	80	160	267	380	180	6007501300
YY300040	3000	40	120	200	380	200	6007501300
YY400050	4000	50	200	333	380	250	6007501300
YY400060	4000	60	240	400	380	250	6007501300
YY500050	5000	50	250	417	380	300	6007501300
YY500060	5000	60	300	500	380	300	6007501300
YY600060	6000	60	360	600	380	300	6007501300
YY600080	6000	80	480	800	380	300	6007501300
YY50150	50	150	7.5	13	380	40	420500320
