PRODCUTS

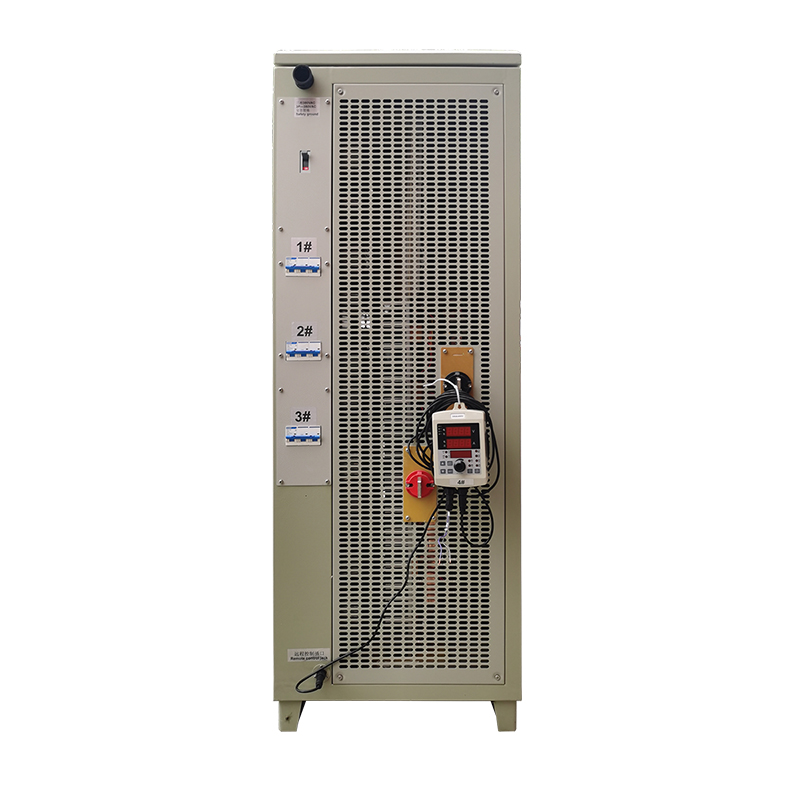

300A400V High Current Rectifier for Electrophoresis with High Power Electrophoresis Power Supply

Features:

1.Lower overall costs:Electrophoresis eliminates the need for phosphating treatment,the entire coating process is shorted,and there are fewer process steps:there are fewer control/filtration equipment,equipment investment is reduced by 30~50%,and the floor space is reduced by 30~50%.Labor costs are also lower.Electrophoresis requires fewer work stations,is simple to operate,and has low operate,and has low operating costs.It is suitable for coating most iron-based surfaces.

2.Better anti-corrosion ability:During the electrophoresis deposition process,chemical conversion treatment and coating film deposition are performed simultaneously.The metal surface always remains activated,the coating film has strong adhesion,and the salt spray resistance is between anodic electrophoresis and cathodic electrophoresis.

3.Due to its electrochemical characteristics,electrophoresis has no electrical shielding phenomenon and is not limited by the size,shape ,inner cavity,etc.of the workpiece.It can cover any surface of a complex shape with a very uniform coating film,and the thicknss error does not exceed ±2 microns,especially in the edges and corners,the coating has the same deposition ability and better anti-corrosion ability.It can greatly improve the corrosion resistance of deep recesses or inner cavities of the workpiece.

4.Energy saving and environmental protection:Paint deposition is a chemical process.Since phosphating is not required,there are no heavy metals in the entire coating process.Moreover,autophoretic coating is a water dispersion system,and electrophoretic paint itself does not contain or only contains a very small amount of organic solvents fundamentally eliminates the pollution problem emitted by organic solvents.

5.Simple and safe:The electrophoresis equipment mainly consists of a pre-treatment tank,a water washing tank,an autophoresis tank,a post-treatment tank,a conveying equipment and a drying oven.It does not require electricity to drive the reaction does not require flammable or explosive chemicals and less solid state.Emissions,instant coating effect,no need for post-curing storage,no special bracket design,process equipment and its operation are simple ,safe and easy to use.

6.High efficiency:The electrophoretic deposition time is generally 1-2 minutes,which has high electrophoretic efficiency:the solid content of the bath liquid is 5~10%.After the paint parts are taken out of the bath liquid,the wet film still has high permeability and reactivity,the bath liquid adhered to autophortetic is better than of electrophoretic paint,and no ultrafiltration recovery equipment is required.

7.Characteristics of the electrophoresis process:Of course,electrophoresis is determined by its deposition mechanism.It can currently only be used for steel parts.Its color is limited to black and its tone is relatively single,so its usually only used as a primers.

Electrophoresis Regular Type Selection
No.	Output Current(A)	Output Voltage(V)	Power(KW)	Input Current(A)	Input Voltage(V)	Weight(KG)	*Width(W)Length(L)Height(H)*
DY2100	2	100	0.2	1	220	16	420420150
DY10100	10	100	1	5	220	18	420420150
DY20100	20	100	2	10	220	18	420420150
DY30100	30	100	3	15	220	18	420420150
DY50100	50	100	5	25	380	20	420420150
DY100100	100	100	10	50	380	50	550450320
DY50150	50	150	7.5	38	380	20	420420150
DY100150	100	150	15	75	380	50	550450320
DY50200	50	200	10	50	380	20	420420150
DY100200	100	200	20	100	380	70	560580680
DY100250	100	250	25	125	380	70	580510680
DY100300	100	300	30	150	380	70	580510680
DY200200	200	200	40	200	380	70	580510680
DY200300	200	300	60	300	380	90	580510920
DY300300	300	300	90	450	380	100	580510920
DY400300	400	300	120	600	380	130	5805101150
DY500300	500	300	150	750	380	180	6005301600
DY400400	400	400	160	800	380	180	6005301600
DY200350	200	350	70	350	380	100	580510920
DY250300	250	300	75	375	380	100	580510920
DY250350	250	350	87.5	438	380	100	580510920
DY30250	30	250	7.5	38	380	20	420420150
DY150250	150	250	37.5	188	380	70	560580680
there are many models，non-regularly can't be list.If U need electronic brochures and customized models,pls contact kimmy sales：+86 13760727815(WTS)
