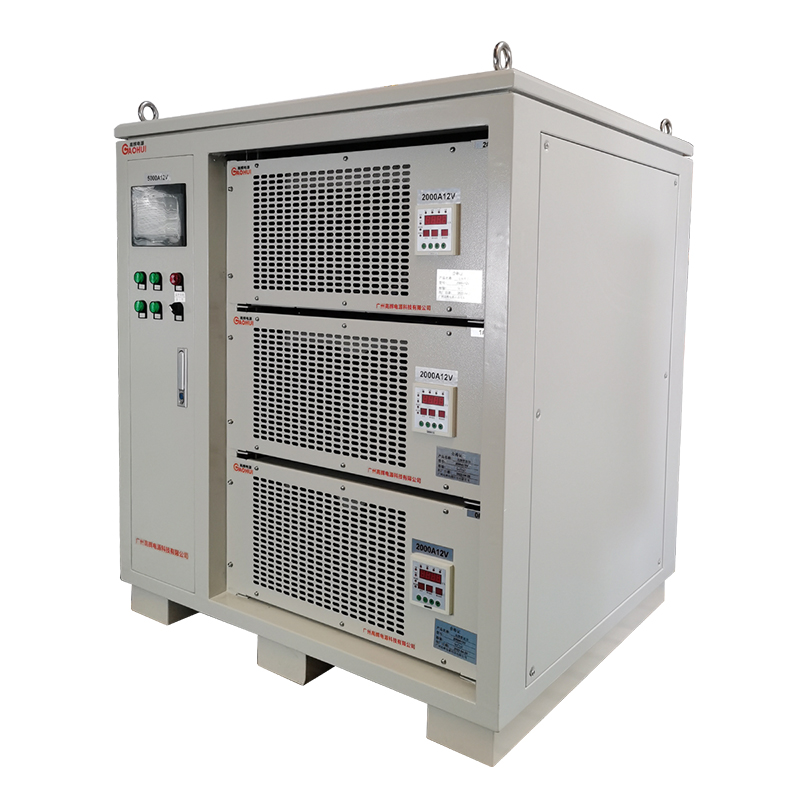

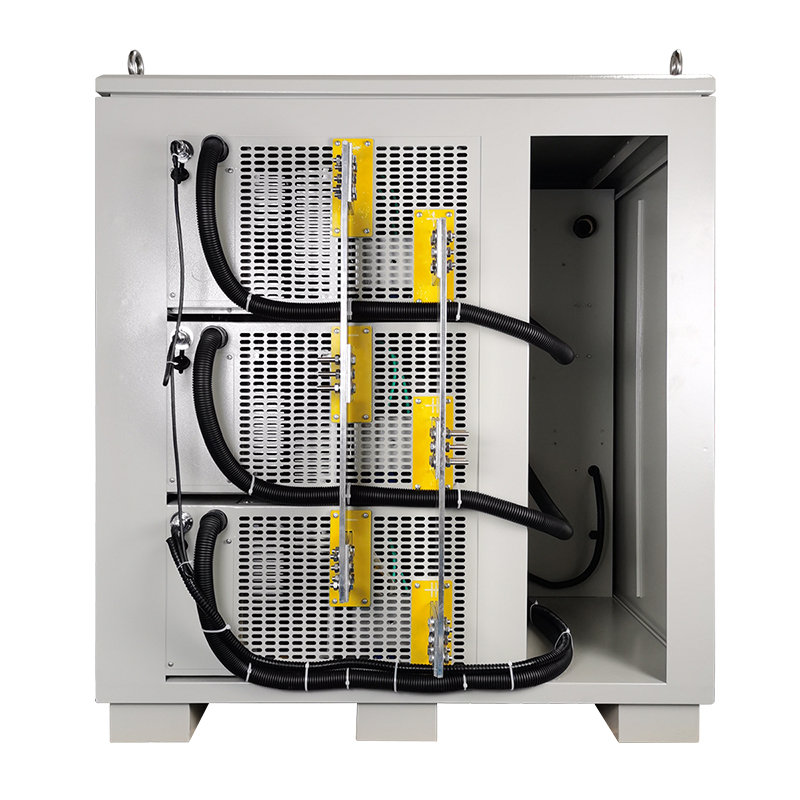

5000A12V Multiple Chromeplating Rectifier in Parallel with Smart Control Panel

Hard chrome plating power supply product uses:

Suitable for special electroplating surface treatment processes such as hard chromium plating.

1.Hard chrome plating power supply based on ordinary high-frequency rectified electroplating power supply.The output voltage is 6-18V.It has the functions of ordinary electroplating power supply.It is an ideal product for special electroplating surface treatment such as hard chromium plating.

2.It has multiple functions such as multi-step ladder power supply,multi-step soft start time setting,automatic reset,etc.,which can meet different process requirements.

3.Power Supply voltage stabilization and current limiting or current stabilization and voltage limiting function,control and display accuracy ≤1%.

4.The equipment has multiple protection functions such as output overcurrent,over temperature and input phase loss.The product is stable and reliable and the internal structure is reasonable.All electronic components are sealed,which reduces the impact of the external environments on the internal components of the equipment.

5.The control system can choose digital control,analog control or RS485 communication control,and can also be equipped with a 4-20mA,0-10V standard control signal interface.

hard chrome power supply parameters
Input Voltage	three phase AC 380±15% 50HZ
Output Voltage	0-12V、0-15V、0-18V、0-20V（can be customize）
output Current	0-2000A、0-3000A、0-4000A、0-5000A、0-6000A、 0-7000A、0-8000A、0-1000A、0-12000A、0-15000A、 0-20000A、0-30000A（can be customize）
Adjustable Method	Analog stepless adjustment/Intelligent digitization
Adjustable Range	Current:0-Maximum，Voltage:0-Maximum
Output Display	digital voltmeter、ammeter、intelligent human-machine touch screen
Output Frequency	30KHZ DC Square wave
Output Time	can be set 10 working time control+10 slow time control
Output section waveform	customers can be set it according to their process requirements
Save File	15 pieces（used for customers to store preset processes for easy recall next time）
Phase Convert Switch	mechanical communication（oil, water combined cooling system, need to be equipped with some functions when ordering instructions)
Output Interface	standard RS485、4-20MA、0-10V can be chosen
Operating Environment	-15~-40℃
Control Accuracy	≤1%
Insulating Strength	≥5MΩ
Insulating Grade	Class B
IP Degree	IP20
Cooling Method	air cooling/water cooling
Working Mode	products can be continuously full-load running
Protection Mode	self-protective function under the abnormal situations such as lack phase,overheating, over-current,short circuit, undervoltage,overvoltage and so on

hard chrome power supply parameters
Input Voltage	three phase AC 380±15% 50HZ
Output Voltage	0-12V、0-15V、0-18V、0-20V（can be customize）
output Current	0-2000A、0-3000A、0-4000A、0-5000A、0-6000A、 0-7000A、0-8000A、0-1000A、0-12000A、0-15000A、 0-20000A、0-30000A（can be customize）
Adjustable Method	Analog stepless adjustment/Intelligent digitization
Adjustable Range	Current:0-Maximum，Voltage:0-Maximum
Output Display	digital voltmeter、ammeter、intelligent human-machine touch screen
Output Frequency	30KHZ DC Square wave
Output Time	can be set 10 working time control+10 slow time control
Output section waveform	customers can be set it according to their process requirements
Save File	15 pieces（used for customers to store preset processes for easy recall next time）
Phase Convert Switch	mechanical communication（oil, water combined cooling system, need to be equipped with some functions when ordering instructions)
Output Interface	standard RS485、4-20MA、0-10V can be chosen
Operating Environment	-15~-40℃
Control Accuracy	≤1%
Insulating Strength	≥5MΩ
Insulating Grade	Class B
IP Degree	IP20
Cooling Method	air cooling/water cooling
Working Mode	products can be continuously full-load running
Protection Mode	self-protective function under the abnormal situations such as lack phase,overheating, over-current,short circuit, undervoltage,overvoltage and so on
