10A18V electroplating experiment power supply

Introduction to electroplating experimental device

The electroplating experimental device is an experiment used for electroplating test research. It is mainly used to study the mutual influence of the main components and additives in the electroplating solution, help analyze the causes of electroplating solution failure, and can also measure the dispersion ability, leveling ability and internal stress of the plating layer of the electroplating solution. This experiment has been widely used in electroplating experimental research and on-site production quality control. The Hastelloy trough experiment has the characteristics of good experimental effect and simple operation. It can determine the current density and other process conditions such as temperature and pH value for obtaining a qualified coating in a short time. The structural design of the Hastelloy trough is helpful to observe the experimental situation. The anode and cathode are not parallel, but at a certain angle. The anode is placed at the high position of the trapezoid and the cathode is placed at the bevel position. This is one of the most important features of the Hastelloy trough. In addition, the Hastelloy trough experimental device also includes heating and stirring functions. Heating is achieved by installing a heating rod at the bottom, and the bottom aeration is used to achieve the purpose of solution stirring to ensure the stability and controllability of the experimental conditions.

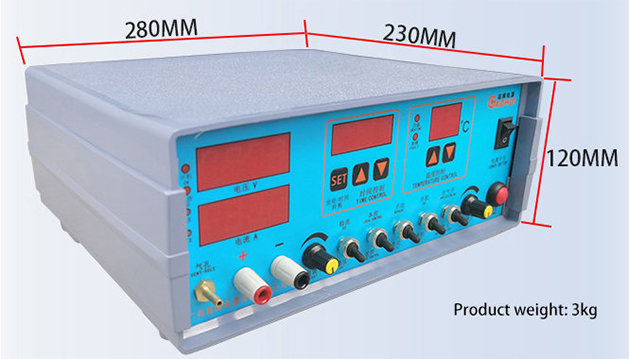

Product model: 10A18V (standard)
Input voltage: single-phase 220V/1P
Input frequency: 50Hz/60Hz, others can be customized
Output current: 0-20A adjustable
Output voltage: 0-18V adjustable
Output power: 360W
Output voltage regulation accuracy: ≤±0.1% (measurement range 10-100%)
Output current regulation accuracy: ≤±0.1% (measurement range 10-100%)
Rated current: 3A
Working mode: current regulation or voltage regulation function can be switched
Cooling method: air cooling type
Display accuracy: 0.01A and 0.01V
Ripple coefficient: ≤1%
Timing function: ampere/time control, time reset
Temperature control: heating indicator light, fault indicator light
Adjustment button: output adjustment, gas volume adjustment
Supporting functions: air hole, test clamp line

Operation Instructions
Voltage: Display the current voltage value
Current: Display the current current value
Ampere/time conversion: Click to convert the cumulative ampere value and time value display
Time control: Set the required time value, press the up and down keys to increase or decrease the value setting
Fault indicator: When the machine fails, the fault indicator light is on.
Temperature control: Display the current temperature value, press the up and down keys to set the required temperature value, and the temperature stops outputting when the set value is reached (in the heating state, the heating indicator light is on)
Power switch: Press up to turn on the machine, press down to turn off the machine
Time reset: Press to restart the time calculation and the machine will work again.
Output terminal positive and negative pole: output power supply positive and negative pole, + represents positive pole, - represents negative pole

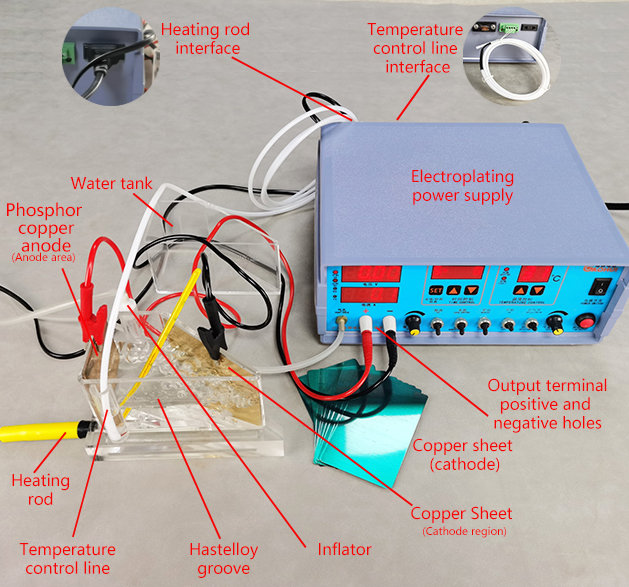

Air hole: connected to Hastelloy trough air pipe
Output adjustment: adjustable current and voltage values, gradually increasing from left to right
Voltage stabilization/current stabilization: dial up for current stabilization mode, dial down for voltage stabilization mode
Local control/remote control: this machine is temporarily equipped with local control mode (remote control mode function is optional)
Manual/automatic: dial up for manual time control mode, that is, start timing when the machine is turned on, dial down for time control automatic mode, that is, the automatic timing mode is started only when there is input current.
Power on/off: dial up for power on state (power on indicator light on), dial down for power off state
Inflation on/off: dial up for air pump on state, dial down for air pump off state
Gas volume adjustment: rotating the button can adjust the gas volume, gradually increasing from left to right

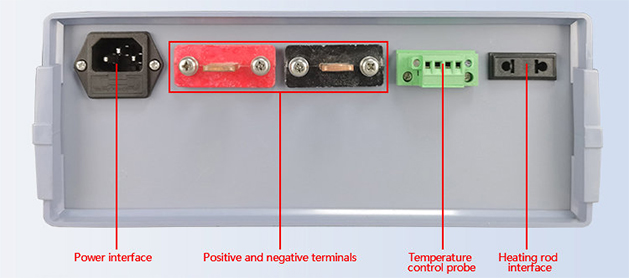

Power interface: AC 220V power input port, AC input fuse cover
Positive and negative terminals: red is positive, black is negative
Temperature control probe: from left to right, 1-4 is marked as probe interface, 1-2 is empty, 3 is negative, 4 is positive
Hastelloy slot heating rod interface
